Cortina MK3 Electric Power Steering E-PAS conversion

[TIB3300 448]

8 hours ago, Stuwindsurf said:

Did you finish getting this up and running?...



Stu



Morning Stu, Yeh works great



I will update the thread

[Stuwindsurf 2]

49 minutes ago, TIB3300 said:



Morning Stu, Yeh works great



I will update the thread

Great! Look forward to it as I am considering going this route

[TIB3300 448]

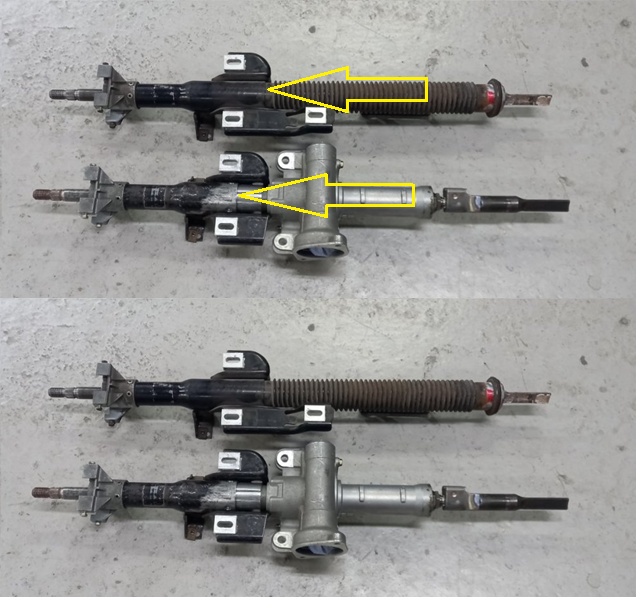

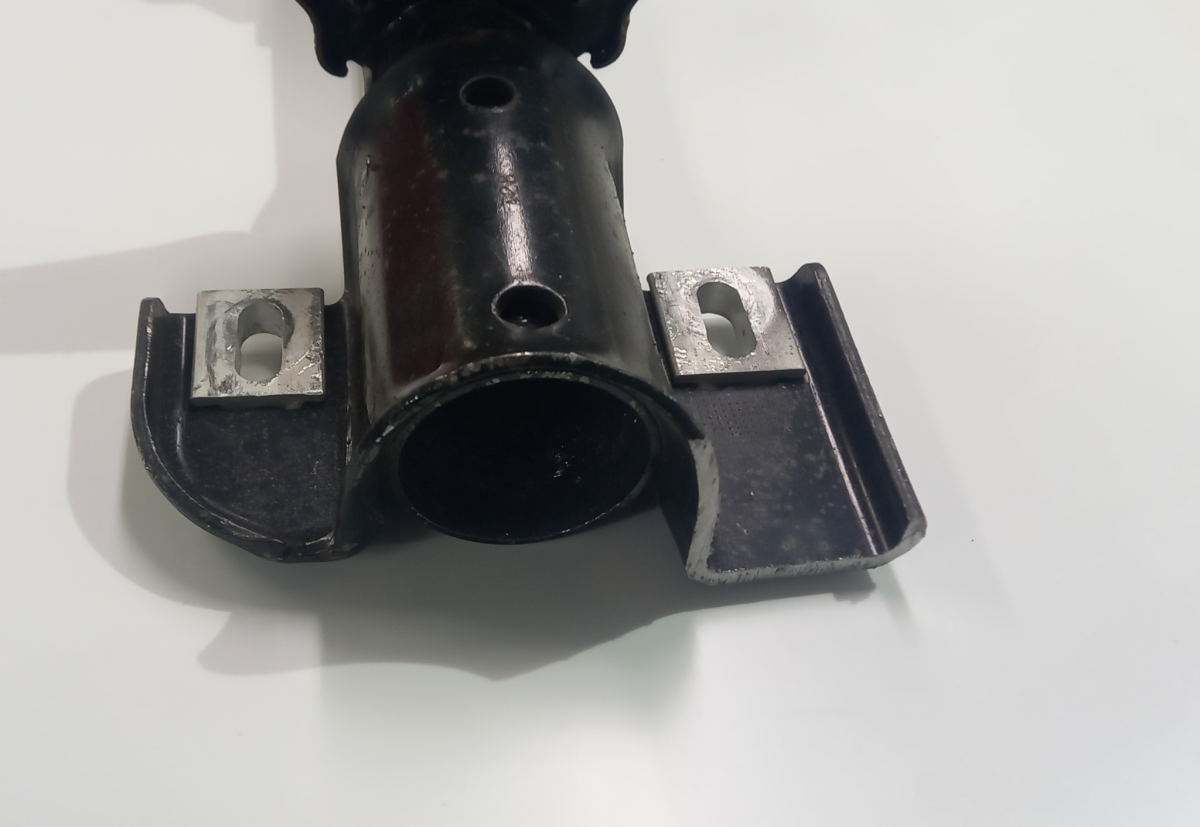

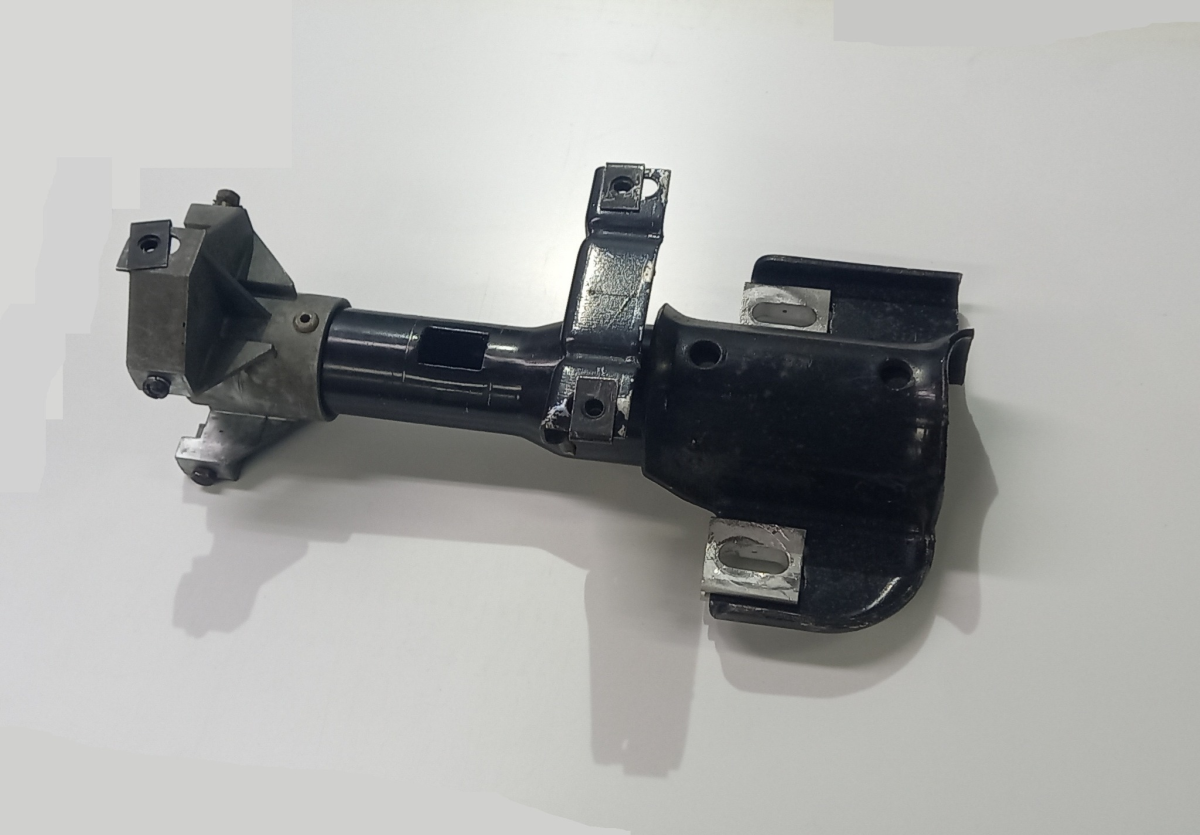

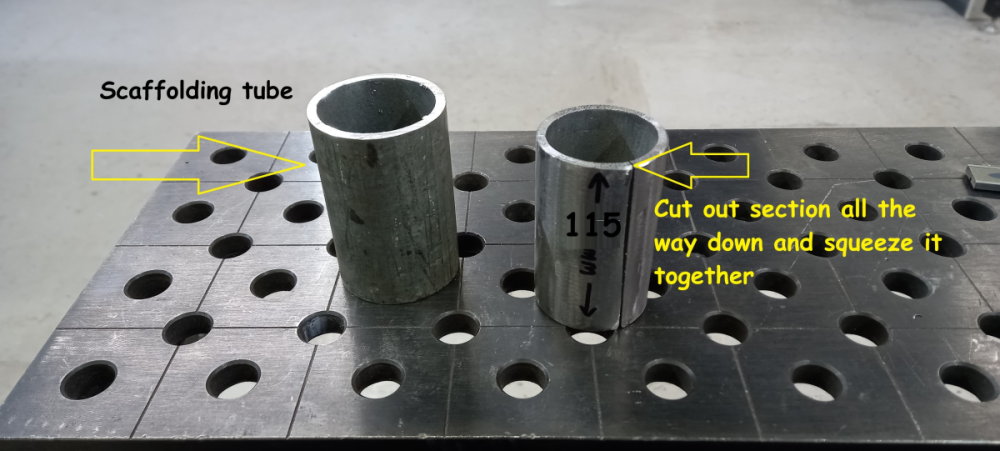

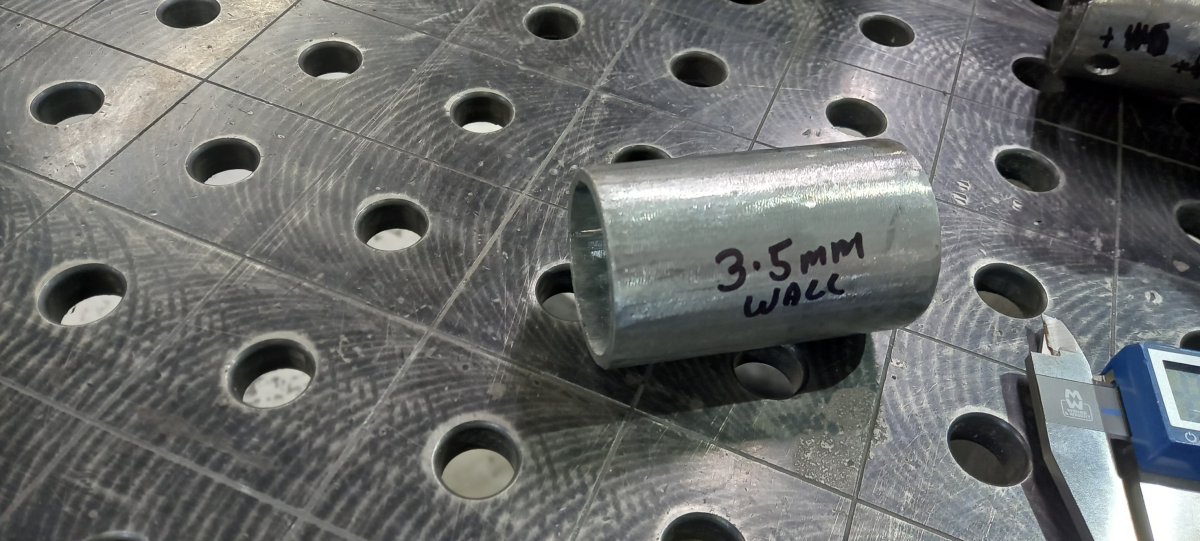

Here's what I have, as I said I wanted people to be able to do it at home. So after I had to use a lathe I stopped documenting the build sorry. Here is the converted pedal box and an original

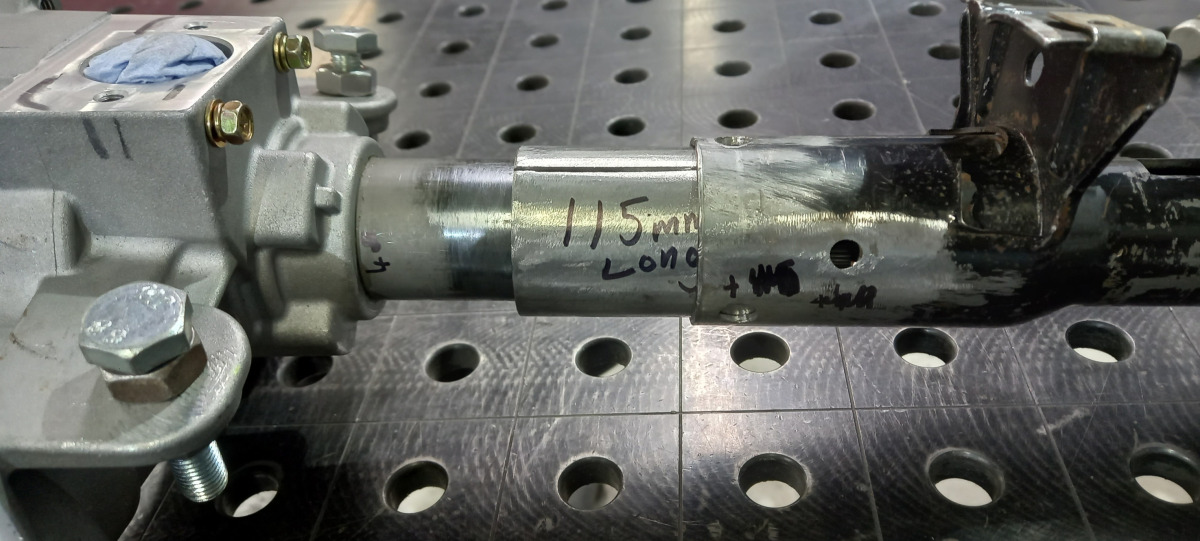

Cutting off the motor

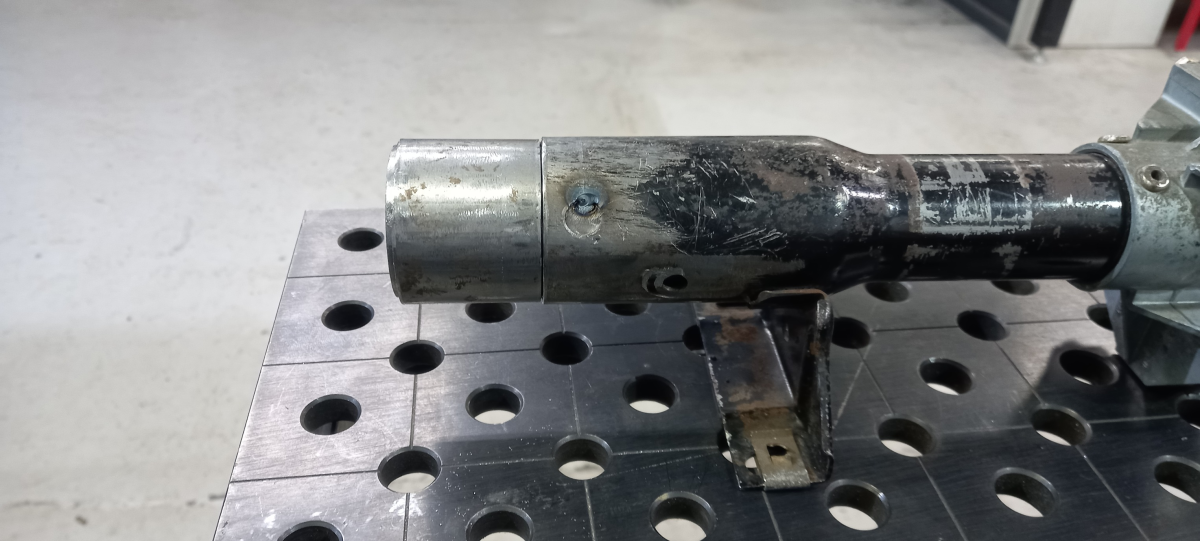

Cutting the original inner shaft



















Edited April 18 by TIB3300

[TIB3300 448]

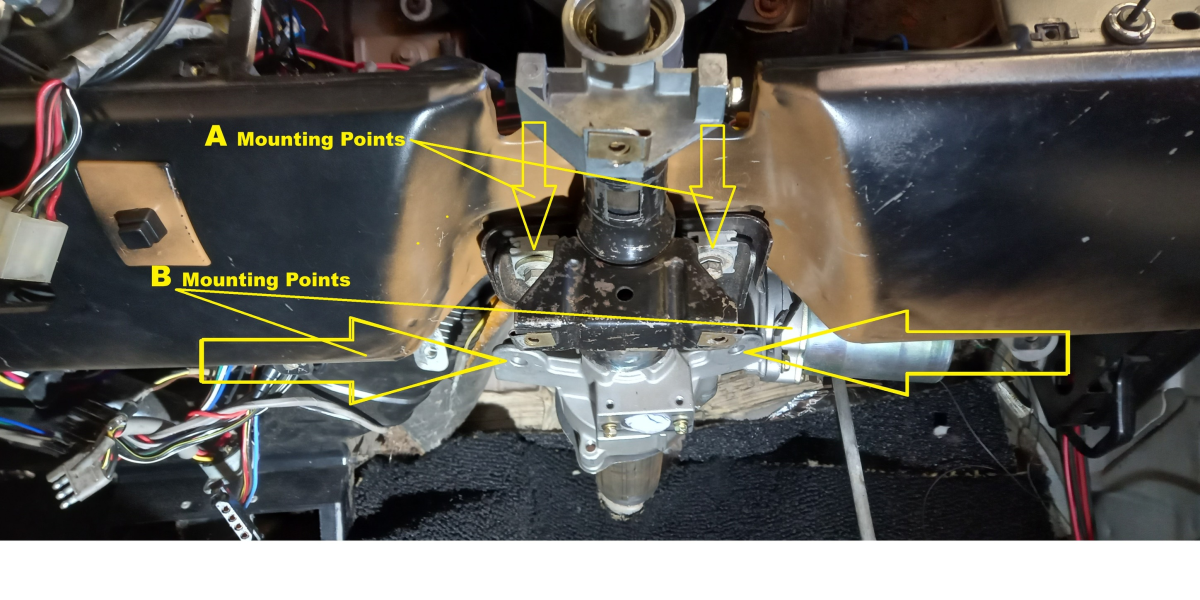

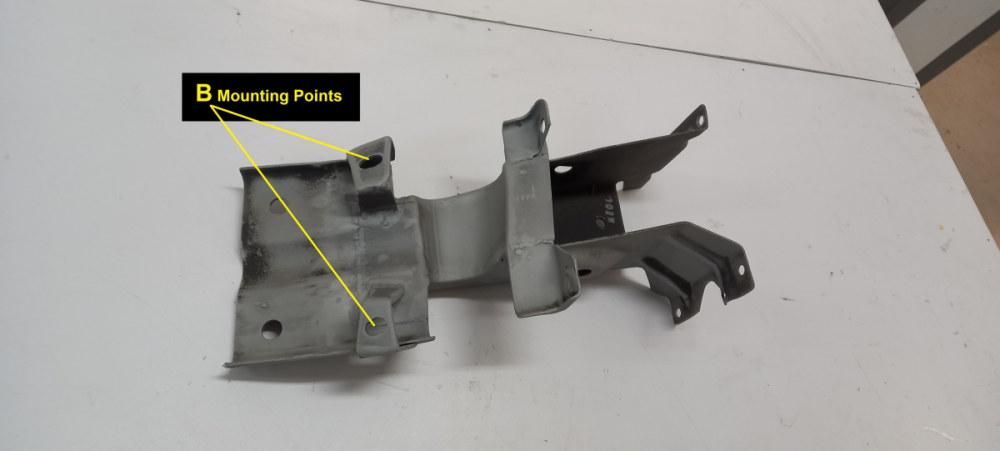

mounting points



Use mounting point B for the main supports , mounting points A and just to hold the head stock



































Edited April 18 by TIB3300

[Stuwindsurf 2]

Thanks for the updated pics! Nice job! It seems to sit tucked out of the way nicely. I was concerned it would hang down below the dash and look ugly.



I have a lathe and a mill so the machine work shouldn't be a problem.



So ref wiring it in, could you tell me what was involved?



Many thanks

Stu

[TIB3300 448]

42 minutes ago, Stuwindsurf said:

Thanks for the updated pics! Nice job! It seems to sit tucked out of the way nicely. I was concerned it would hang down below the dash and look ugly.



I have a lathe and a mill so the machine work shouldn't be a problem.



So ref wiring it in, could you tell me what was involved?



Many thanks

Stu

Hiya Stu



The wiring is easy

As far as I know, there are 3 different control types



1 with a little controlled potentiometer



2 one that used GPS



3 This one that uses the force applied to the wheeled potentiometer inside



Automatic - Corsa B C - Electric power steering controller Kit - EPAS Kit - OPEL | eBay UK













[TIB3300 448]

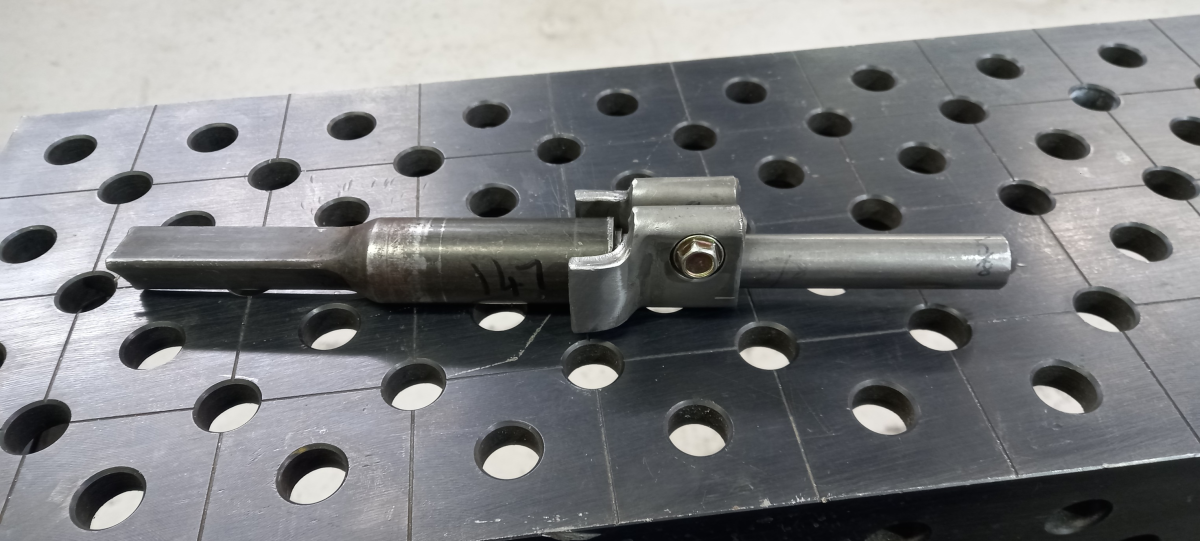

One of the thing I had to bodge, was this, as I couldn't find a splined coupler for the bottom on the corsa PAS unit.

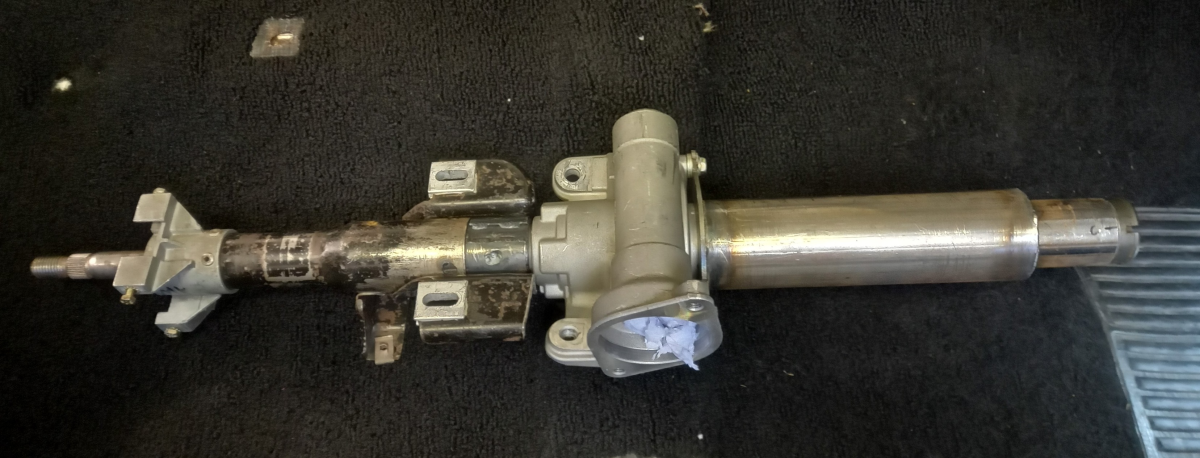

This is the top part of the UJ that come with the Corsa unit











[TIB3300 448]

If you do decide to do it, feel free to use this post to ask questions and I can guide you through it

[TIB3300 448]

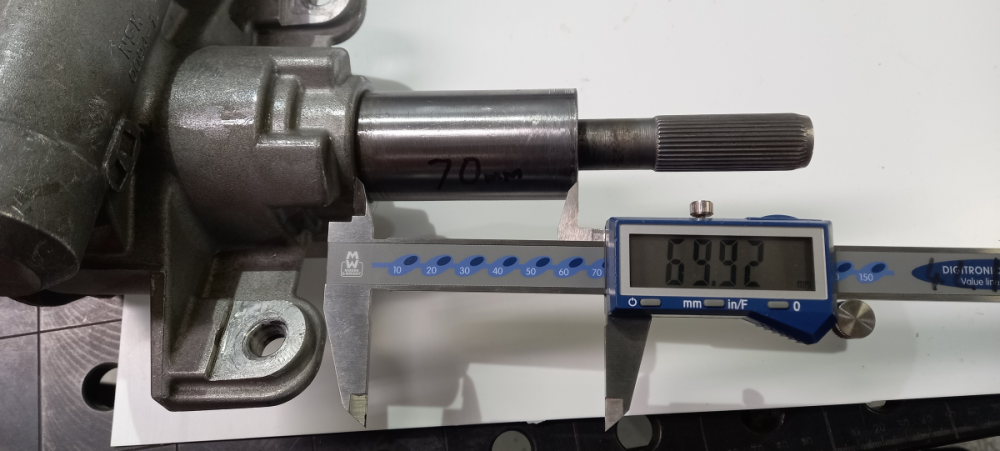

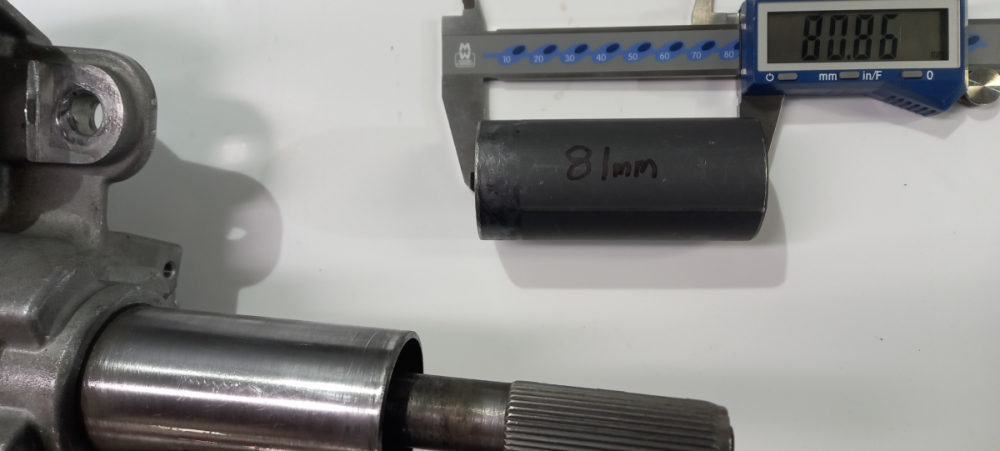

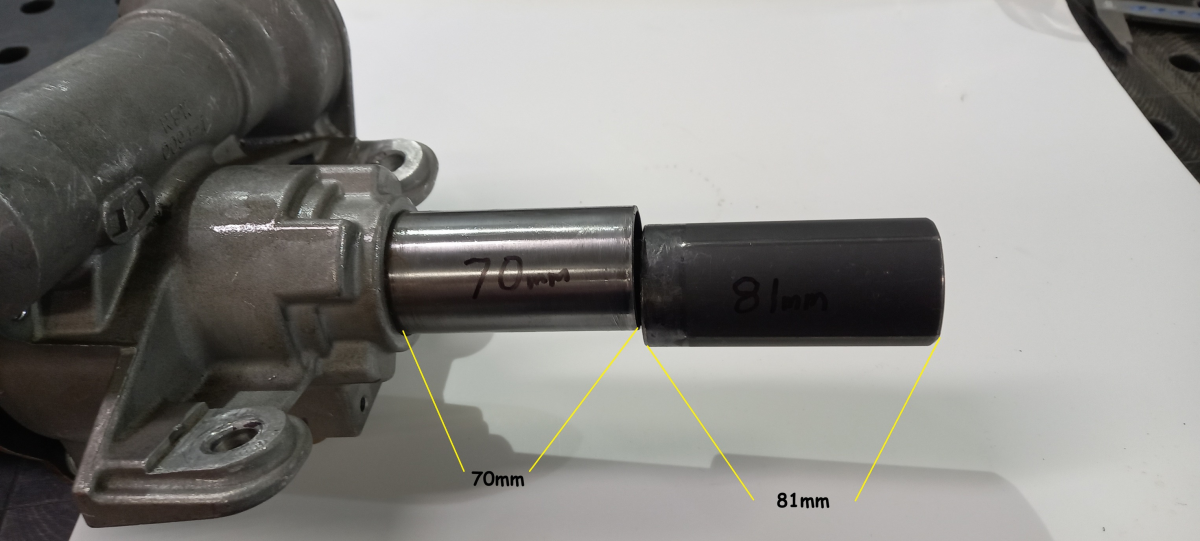

I cant remember why I cut this so short?

This is something that may not needed to be done



Edited April 18 by TIB3300

[Stuwindsurf 2]

That's great, thank you for the info 👍🏻
